NexiusZoom – ESD

NexiusZoom-mikroskopen från Euromex möjliggör studier av prover mig högsta precision och ger tredimensionella bilder som möter kraven i de mest krävande mikroskoperingsapplikationerna. Dessa mikroskop lämpar sig utmärkt för analys av materialytor eller fint arbete där precision krävs.
NexiusZoom stereomikroskopen finns med ett stort antal valbara stativ, med eller utan LED-ljus. De är ideala för ett brett spann av av applikationer inom labb och utbildning. Med extra linser och objektiv kan förstoringar upp till 180x nås.

Dessa mikroskop är spjutspetsmodeller med zoomfunktion för elektronikindustrin och är säkrade för statiska urladdningar.

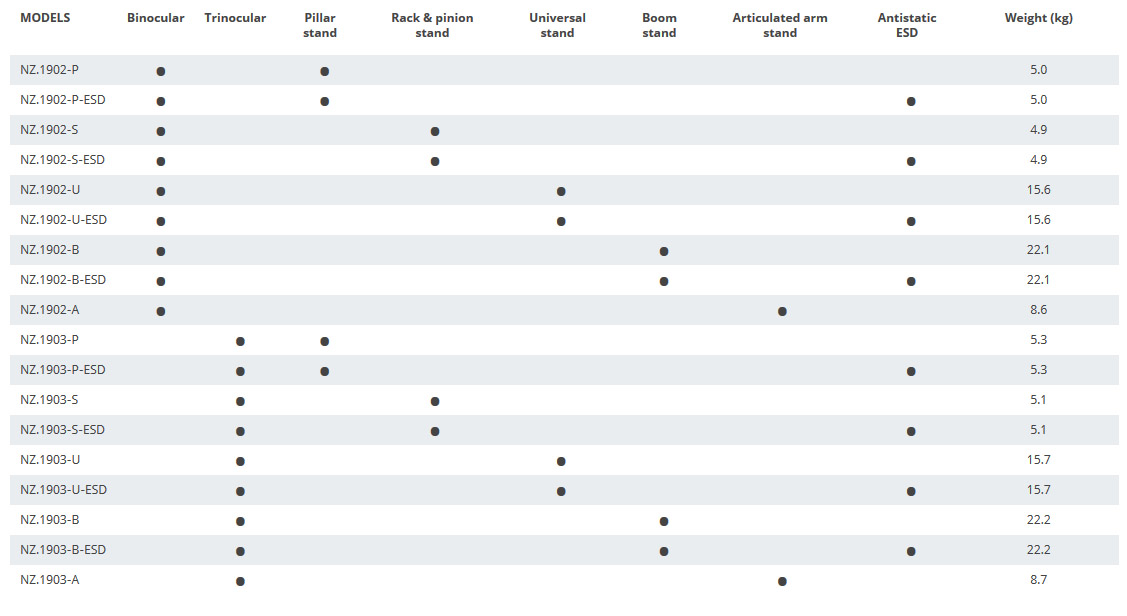

Se översikt för modellerna bland bilderna ovan eller i produktkatalogen ovan.

EYEPIECES
Pair of HWF 10x/22 mm eyepieces

HEAD
Binocular or trinocular heads with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments. Interpupillary distance adjustable between 54 mm and 75 mm

OBJECTIVE
Zoom 1:6.7 objective with 0.67x to 4.5x magnifications. Field of view from 33 mm to 4.9 mm. Working distance 110 mm. Auxiliary lenses 0.5x, 0.75x, 1.5x and 2.0x available. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

MAGNIFICATIONS
Working distance and field of view with standard HWF 10x / 22 High Wide Field eyepieces - se bilderna

STAND

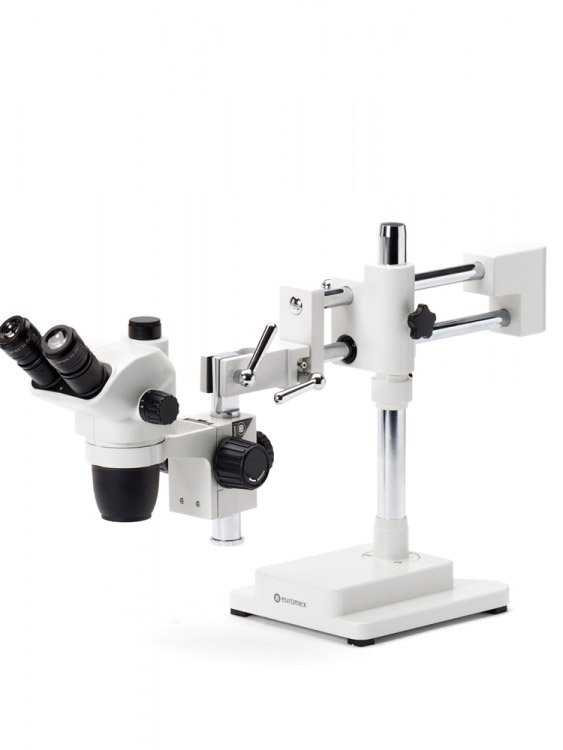

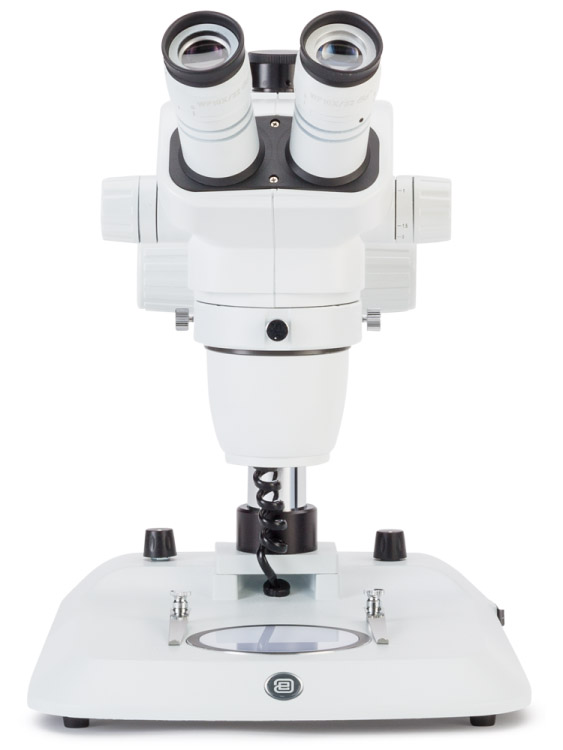

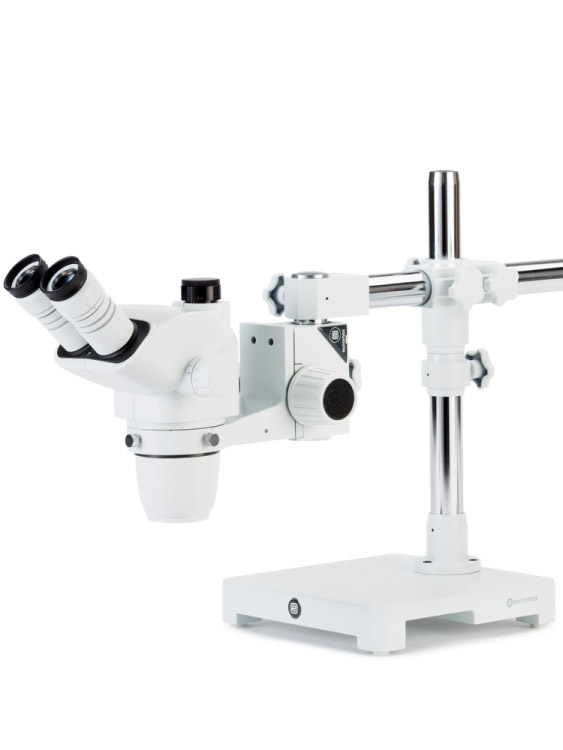

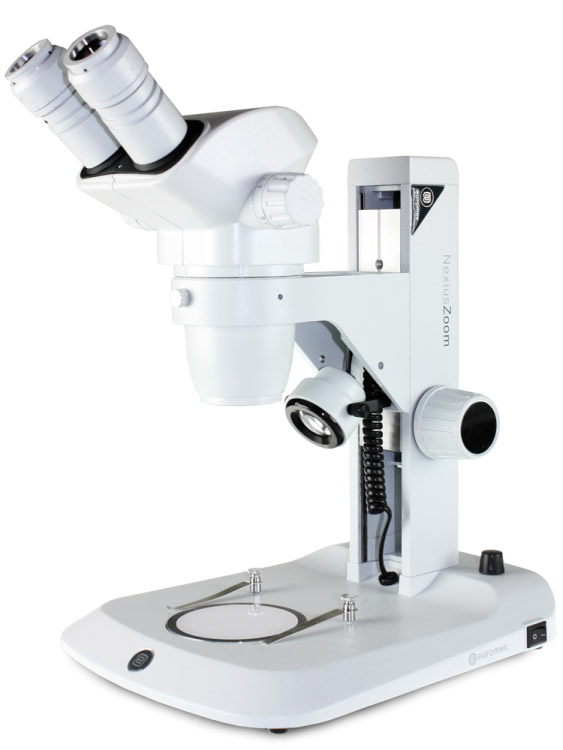

The rack & pinion and pillar stands of the NexiusZoom are equipped with an ergonomically designed, wide flat base. Complete with 2 object clamps and Ø 100 mm transparent and black/white stage plates and double illuminators. The coarse adjustment is equipped with tension control. The ergonomically designed universal single arm stand and double arm boom stand are ideal for looking at large samples or working under the microscope. Standard supplied without illumination
Suitable for e.g. ring illuminators LE.1972 and LE.1973 with 60 or 144 power LEDs controlled in segments ideal for creating or lift shades
The stands are alloy metal casted with hardened off-white coating. ESD safe coating versions are also available
ILLUMINATION
The 3 W transmitted and incident LED illuminators with internal power supply 100-240 V operation. Both illuminators can be used simultaneously and the light intensities can be adjusted separately

ESD SAFE MICROSCOPES
For inspection and assembly applications. Electrostatic discharge (ESD) is the unwanted sudden flow of electricity between two electrically charged objects. ESD can cause a range of harmful effects as well as permanent damage to solid state electronics components. Euromex therefore now introduces electrostatic protected microscopes in the NexiusZoom range. The body and stand of the microscope are coated with a special static dissipative paint eliminating harmful electrostatic discharges making the microscopes suitable for all static-sensitive environments

PACKAGING
Supplied with power cord, dust cover, a spare fuse, user manual. All packed in a polystyrene box

PRODUCT VIDEO
Check out the product video below and learn more about this microscope: https://player.vimeo.com/video/166164121
