HD-Mini color camera

The Euromex HD-Mini camera offer the perfect solution to modern microscopy for industry and laboratories where real time images are needed. These HD image quality cameras can be used for biological, metallurgical or stereo microscopes

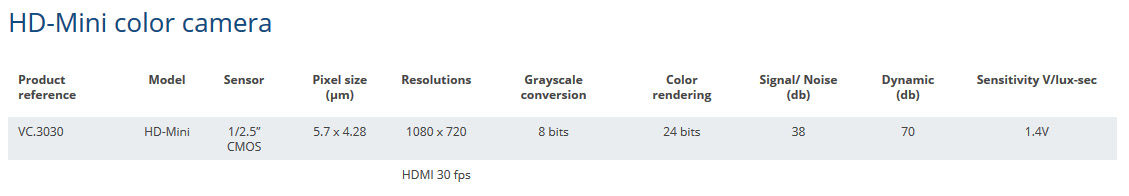

High definition HD720p CMOS color camera with HDMI interfaces

The cameras are equipped with high sensitive sensors for low and intense light conditions and also suitable for coaxial illumination and machine vision applications

The real time images generated with this camera provide excellent color rendering with high frame speeds. All settings are done automatically and therefore very user friendly. Once connected directly to a HDMI screen, TV or beamer with HDMI input, one can use the remote control to capture and save images and 720p videos (.avi format) on the integrated SD memory card

Captured images and videos can be very easily reviewed without any need of a computer
These key properties make the cameras ideal for real time inspection, education and live demonstrations

Cameras are supplied with a C-mount and can be connected to all Euromex microscopes using optional C-mount adapters. The HD-Mini camera is also supplied with a 0.5x C-mount adapter for standard 23.2 mm tube

The HD-Mini is connected via a HDMI input and controlled by buttons on the camera and comes without software. Captured images and videos (.avi format) are saved to the on-board SD memory card

PACKAGING
The HD-Mini 720p camera (ref. VC.3030) is supplied in a carton box with remote control, 30.0 and 30.5 mm to 23.2 mm conversion adapters for use with stereo microscope and with 23.2mm tube C-mount adapter. Supplied with 0.5x C-mount adapter for standard 23.2 mm tube

STAND-ALONE
No need to open or start a computer or any computer knowledge to use a camera. This results in faster, more flexible and compact working conditions. Simply plug the camera to a high resolution HDMI monitor or TV and the system is ready to go. Ideal for quality control systems etc
Very intuitive controls allow users to capture and save images and to record videos on the integrated SD memory card
