EduBlue digital - med inbyggd 3,2 Mpx kamera

De digitala mikroskopen har motsvarande egenskaper som fristående klassiska mikroskop, men tack vare att digitala mikroskop har en inbyggd kamera så ger de en ökad flexibilitet och möjlighet att ta bilder samt att se bilderna direkt på dator.
Den inkluderade mjukvaran möjliggör att bilder direkt kan visas på skärm eller via projektor samt möjlighet att ta och spara bilder i vilka det går att mäta direkt i programmet.

EduBlue digital stereomikroskop är specialdesignade för utbildningsändamål och utrustade med WF10x/20 mm okular och två eller tre objektiv på objektivrevolver som ger tydliga och skarpa bilder. Påfallande LED-ljus och genomlysning med LED-ljus, 60 mm arbetsdistans. Modellen är utrustad med laddningsbart batteri och lämpar sig därför för sladdlös drift, har extern transformator.

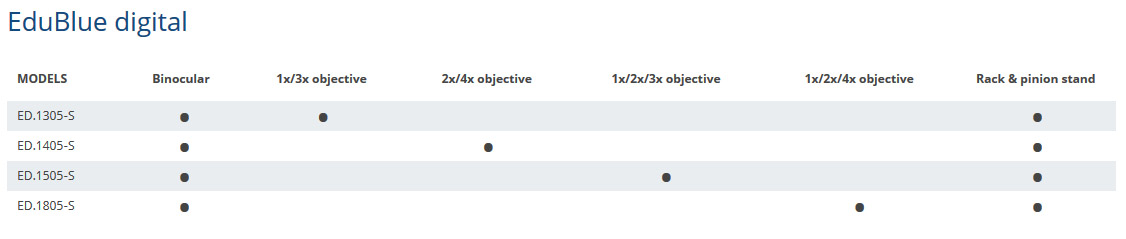

Se översikt för modellerna bland bilderna ovan eller i produktkatalogen ovan.

EYEPIECES
Pair of secured WF10x/20 mm eyepieces supplied with eyecups

HEAD
Binocular head with 45° inclined tube. Diopter adjustment of ± 5 on one side. Interpupillary distance adjustable between 55 and 75 mm. All models supplied with a 3.2 MP USB-2 camera

DUAL MAGNIFICATION OBJECTIVES
Dual revolving nosepieces with 1x/3x or 1x/2x , which provide standard magnifications of 10x and 30x or 20x and 40x. Working distance 60 mm. Field of views of 20/6.7 mm or 10/5 mm. Magnifications can be altered using optional eyepieces. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

TRIPLE MAGNIFICATION OBJECTIVES
Triple revolving nosepiece with 1x/2x/3x or 1x/2x/4x, which can provide standard magnifications of 10x, 20x and 30x or 10x, 20x and 40x. Working distance 60 mm. Field of views of 20/10/6.7 mm or 20/10/5 mm. Magnifications can be altered using optional eyepieces

STAND
The rack & pinion stands of the EduBlue digital microscopes are equipped with ergonomically designed flat base, complete with 2 object clamps and Ø 60 mm transparent and black/ white stage plate. The coarse adjustment is equipped with tension control. The stands are alloy metal casted with hardened off-white coating

ILLUMINATION
The transmitted and incident 1 W LED illuminations can be used simultaneously and the light intensities can be adjusted separately. Supplied with an external 100-240 V mains adapter/charger and 3 rechargeable batteries for corded and cordless use

CAMERA
All the EduBlue digital microscopes are equipped with a 3.2 MP CMOS USB-2 camera. Maximum resolution is 2048 x 1536 pixels, smaller resolutions are selectable, 24 bits color depth, up to 10 frames per second. Delivered with the ImageFocus 4 software, USB-2 cable and a micrometer 1mm/100 slide. Warranty for the camera is 2 years

SOFTWARE
The capture and analysis ImageFocus 4 software allows to save images in .jpg, .tif or .bmp formats as well as .avi format videos. This software also allows a full range of analysis like measurements on still and live images and annotations on captured images. Compatible with Windows XP, Vista, 7, 8 and 10, both 32 and 64 bits configurations. A Mac OS Light version is also available for capturing images. Updates can be downloaded on our website

PACKAGING
Supplied with 100-240 V mains adapter/charger, dust cover, eyecups and user manual. All packed in a polystyrene box
