EcoBlue Digital – inbyggd kamera

De digitala mikroskopen har motsvarande egenskaper som fristående klassiska mikroskop, men tack vare att digitala mikroskop har en inbyggd kamera så ger de en ökad flexibilitet och möjlighet att ta bilder samt att se bilderna direkt på dator.

Den inkluderade mjukvaran möjliggör att bilder direkt kan visas på skärm eller via projektor samt möjlighet att ta och spara bilder i vilka det går att mäta direkt i programmet.
EcoBlue digital monokulära mikroskop är utrustade med ett WF10x/18 mm okular, fyra akromatiska objektiv på objektivrevolver, ett objektbord 123*119 mm med två klämmor, Abbekondensator och 1 W LED-ljuskälla. Modellerna kan som option utrustas med ett objektbord justerbart 50*30 mm i x- och y-led.

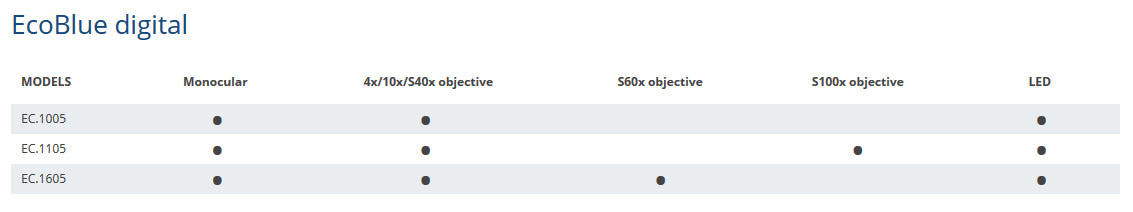

Se översikt för modellerna bland bilderna ovan eller i produktkatalogen ovan.

EYEPIECE(S)
Wide field WF 10x/18 mm eyepiece with pointer

HEAD
Monocular heads with 45° inclined tubes and integrated USB-2 3.2 MP camera

NOSEPIECE
Revolving nosepiece for 4 objectives on ball bearings

OBJECTIVES
Achromatic 4x/0.10, 10x/0.25, S40x/0.65, S60x and S100x oil immersion objectives (depending on model). The S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING
Coaxial coarse and fine adjustments, 200 graduations,12.5 μm per graduation, 2.5 mm per rotation, total travel approximately 15 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment are equipped with friction control

STAGES
Plain 123 x 119 mm stage with two non-removable object clamps
(Optional: Attachable 51 x 26 mm X-Y mechanical stage (EC.9500)

CONDENSER
Height adjustable Abbe condenser N.A.1.25 with iris diaphragm and filter holder

ILLUMINATION
Monocular models are supplied with a 1 W LED illumination with integrated power supply

CAMERA
All the EcoBlue digital microscopes are equipped with a 3.2 MP CMOS USB-2 camera, maximum resolution 2048 x 1536, 24 bits color depth, up to 15 frames per second. Delivered with the ImageFocus 4 software, USB-2 cable and a micrometer 1mm/100 slide. Warranty for the camera is 2 years

SOFTWARE
The capture and analysis ImageFocus 4 software allows to save images in .jpg, .tif or .bmp formats as well as .avi format videos. Images can be annotated and measurements can be performed on live or captured images. Compatible with Windows XP, Vista, 7, 8 and 10, both 32 and 64 bits configurations. A Mac OS Light version is also available for capturing images

PACKAGING
Supplied with power cord, dust cover, spare fuse, white filter, user manual and 5 ml immersion oil for models with an S100x objective
