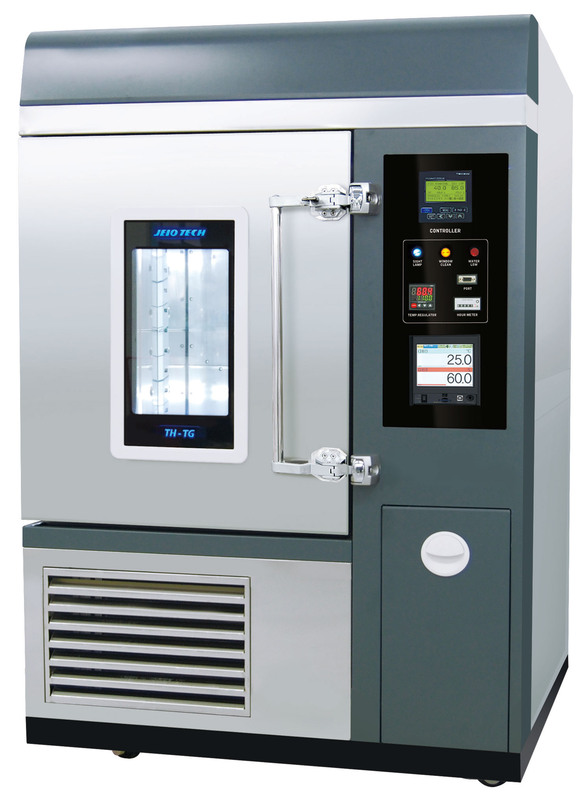

TH-TG-serien stabilitetskammare / klimatkammare 180-1500 liter, -5°C till +100°C, 10-95 % RH

Performance

• Microprocessor PID control / Temperature calibration / Automatic tuning.
• Advanced performance of low and high temperature and humidity control, achieved by adapting the humidification tank exterior to the chamber, added benefit for long term test.
• Water recycling and filtering system reduce water consumption for longer operation.
• Air-tight door closure with perfect sealed packing.
- Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber.
- Two-point door latch also enhances tightness to door closure.
• Energy efficiency is achieved by optimization of the insulation system.
- Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures of over 60℃.

Convenience

• Spacious chamber volume with a maximum capacity of 1500L.
- Various volume sizes, available to suit any users’ need.
• Corrosion resistance stainless steel chamber and electric polished humidification tank.
• Maintenance of water supply are easily performed with a front water tank.
- Portable water container makes supplying water convenient.
• Water supply during operation is also available for long term test purposes.
• Direct water system provides user great convenience when performing long-term tests. (optional)
• Clear observation of samples.
- Tempered glass door with built in heating wire.
- Energy efficient, long life span LED lighting.
- Wider view, inner glass door is available for monitoring of samples. (optional)
• Cable port for introduction of external probes or wires.
- 50mm diameter cable port comes standard on the left side of the unit.
- Additional 50mm or 80mm diameter cable ports, custom ordered. (optional)
• Casters for easy mobility during installation or relocation.
• User friendly LCD controller.
- Set value and present value are clearly visible together on display.
- Operating progress visible in graph mode allow for direct data interpretation.
- Temperature and other operating parameters recorded with use of selectable recorder. (optional)
- Sufficient programmable control support.
- Programmable pattern capacity: 120
- Pattern repeat time: 999
- Max. segments per a pattern: 100
- Available max. segments*: 1200
- Programmable process time per a segment: 0 to 999hr, 59 min 59 sec
* Even though the max. segments per a pattern are 100, available total segments are up to 1200 not 12000, so you need to arrange the number of segment an patterns properly.
• Computer interface.
- RS-485 communication port enables connection of up to maximum 9 units. Simultaneous monitoring and operating of multiple units is an available feature. (optional)
- Program patterns are simple to set with the use of our software.
- Storage of program information, backup of value settings, recovery, temperature, humidity values.
- RS-232 communication port comes standard.

Safety

• Built in door lock with a key.
• Automatic shut off after overheat alarm.
• Low and empty water level alarm.
• Power supply leakage breaker.
• Over current protection.
• Open door alarm.
