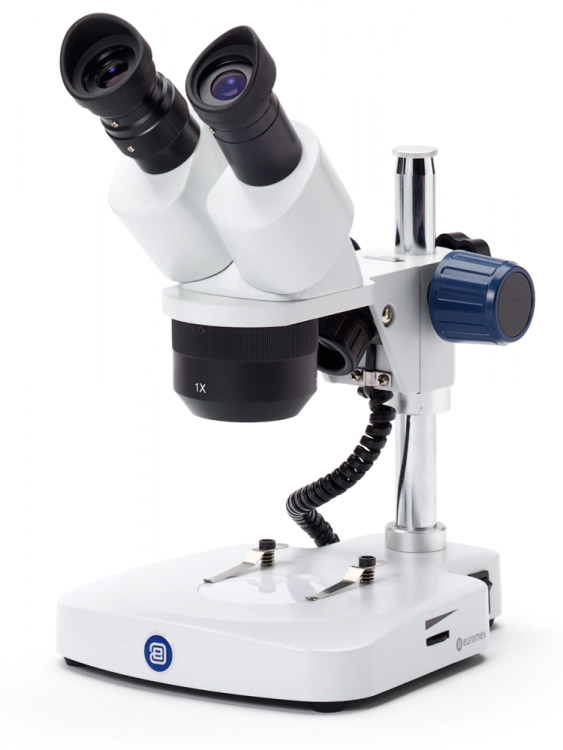

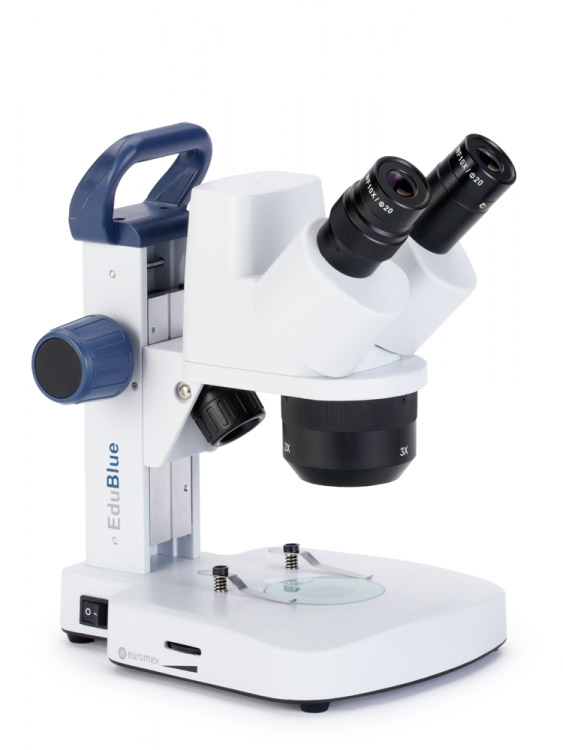

EduBlue

Med goda optiska egenskaper är de ergonometriska EduBlue stereomikroskopen utmärkta för långa produktiva sessioner för studenter, nybörjare och specialiserade användare. EduBlue-mikroskopen är ideala för utbildningsändamål och finns i utföranden om två eller tre objektiv från 5x till 80 förstoring. Alla modeller är utrustade med LED-belysning för påfallande ljus och genomlysning underifrån. Två parallella optiska ljusgångar ger en tredimensionell bild av de små objekten som studeras, insekter, växtdelar eller mineraler.

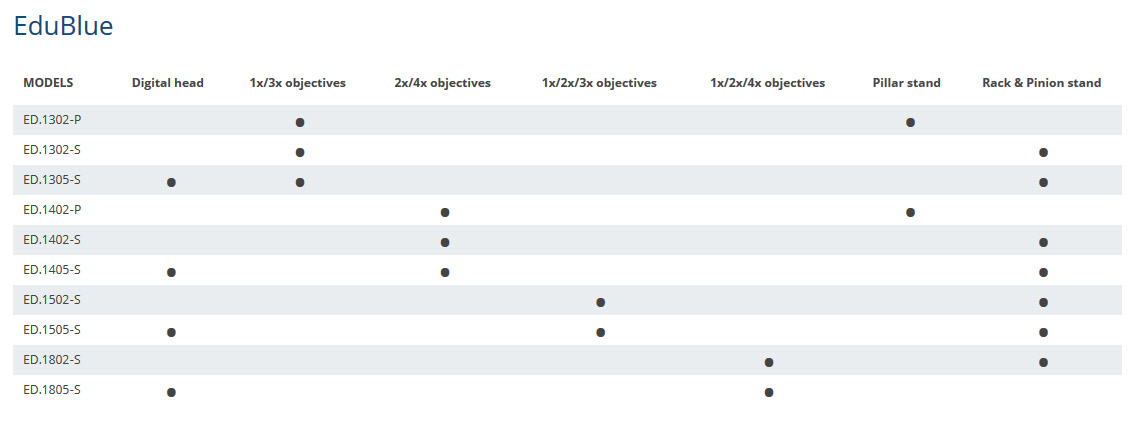

Se översikt för modellerna bland bilderna ovan eller i produktkatalogen ovan.

EYEPIECE(S)
Pair of secured WF10x/20 mm eyepieces supplied with eyecups

HEAD
Binocular head with 45° inclined tube. Diopter adjustment of ± 5 on one side. Interpupillary distance adjustable between 55 and 75 mm. Digital head is supplied with a 3.2 MP USB-2 1/2” CMOS camera. Maximum 2048 x 1536 pixels resolution

DUAL MAGNIFICATION OBJECTIVES
Revolving nosepiece with dual 1x/3x and 2x/4x , which can provide standard magnifications of 10x and 30x or 20x and 40x. Working distance 60 mm. Field of views of 20/6.7 mm or 10/5 mm. Magnifications can be altered using optional eyepieces. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

TRIPLE MAGNIFICATION OBJECTIVES
Revolving nosepiece with triple 1x/2x/3x and 1x/2x/4x, which can provide standard magnifications of 10x, 20x and 30x or 10x, 20x and 40x. Working distance 60 mm. Field of views of 20/10/6.7 mm or 20/10/5 mm. Magnifications can be altered using optional eyepieces

STAND
The rack & pinion and pillar stands of the EduBlue are equipped with ergonomically designed flat bases, complete with 2 object clamps and Ø 60 mm transparent and black/ white stage plate. The coarse adjustment is equipped with tension control. The stands are alloy metal casted with hardened off-white coating

ILLUMINATION
The transmitted and incident 1 W LED illuminations can be used simultaneously and the light intensities can be adjusted separately. Supplied with an external 100-240 V mains adapter/charger and 3 rechargeable batteries for corded and cordless use

DIGITAL MODELS
Digital models are equipped with a 3.2 MP USB 2 1/2 inch sensor CMOS camera. Maximum resolution is 2048 x 1536 pixels, smaller resolutions are selectable. Delivered with ImageFocus 4 for capturing of images and videos. This software also allows a full range of analysis like measurements on still and live images and annotations on captured images. Compatible with Windows XP, Vista, 7, 8 and 10, all 32 and 64 bits configurations. For Mac OS more basic software is available. Updates can be downloaded on our website

PACKAGING
Supplied with 100-240 V mains adapter/charger, dust cover, eyecups and user manual. All packed in a polystyrene box
