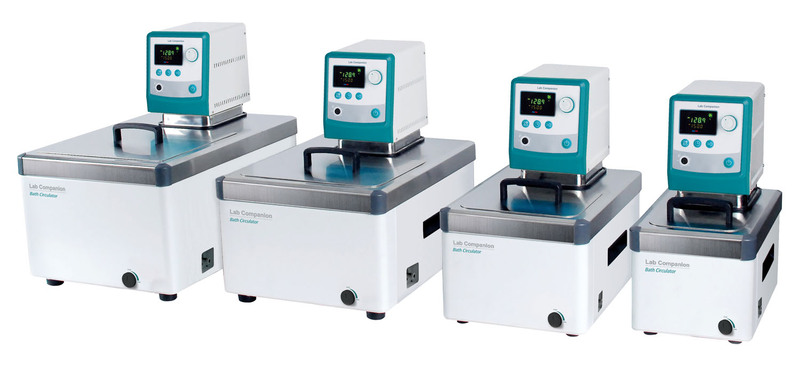

CW3-serien värmebadscirkulatorer

4 modeller, välj mellan intern volym 5, 10, 20 eller 30 liter

Performance

•Temperature range from ambient +5℃to 150℃.
• Microprocessor PID control.
• Three point temperature calibration / Automatic tuning / Automatic run.
• Accurate, stable, and efficient temperature management by using a powerful variable-speed pump. (1 to 3 steps of pump for internal circulation and 4 to 5 steps for external circulation)
• Powerful pump pressure and flow rate throughout the whole temperature range.

Convenience

• Bright VFD display with quick adjustable dial knob. (0.1℃ resolution)
• Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
• Convenient memory function of up to three frequently set temperature.
• Corrosion-resistant, leak-proof, round-cornered, and easy-to-clean stainless steel bath with front access drain valve.
• RS-232 interface for external control and data collection. (RS-232 to USB serial converter is provided.)
• Side handles enables convenience handling and transport.

Safety

• Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact
• Complete safety protection system with warning alarms. - Low fluid level and dry-running, over-temperature, over-current.
• Keypad lock function prevents accidental changes during operation.
