Hem / Produkter / Mikroskop / Digitala lösningar, utbildning / BioBlue Digital – inbyggd kamera

De digitala mikroskopen har motsvarande egenskaper som fristående klassiska mikroskop, men tack vare att digitala mikroskop har en inbyggd kamera så ger de en ökad flexibilitet och möjlighet att ta bilder samt att se bilderna direkt på dator.
Den inkluderade mjukvaran möjliggör att bilder direkt kan visas på skärm eller via projektor samt möjlighet att ta och spara bilder i vilka det går att mäta direkt i programmet.

BioBlue digital mikroskop är utrustade med ett WF10x/18 mm okular, fyra semiplanakromatiska objektiv på inåtvänd objektivrevolver som ger tydliga och skarpa bilder. De har antingen ett fast objektbord 120*120 mm med två klämmor eller ett mekanisk objektbord 130*130 mm justerbart 70*28 mm i x- och y-led för precis positionering av prover. Med Abbekondensator och NeoLED- eller LED-ljuskälla och inbyggt laddningsbart batteri för sladdlös drift.

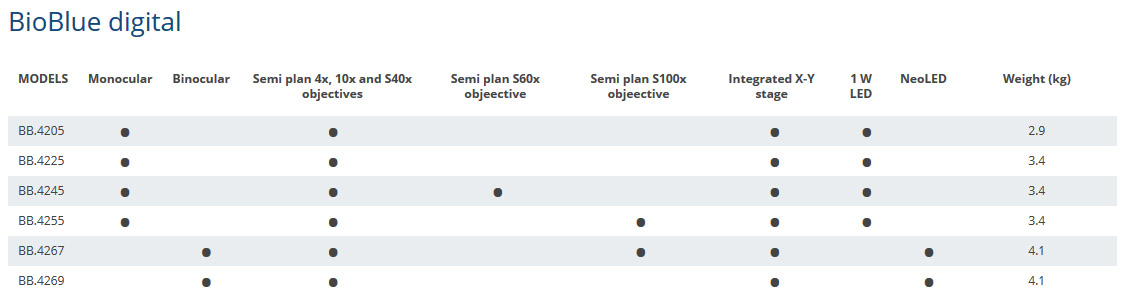

Se översikt för modellerna bland bilderna ovan eller i produktkatalogen ovan.

EYEPIECE(S)
Wide field WF10x/18 mm secured eyepiece with pointer for monocular models. The eyepieces of the binocular models are supplied without pointer

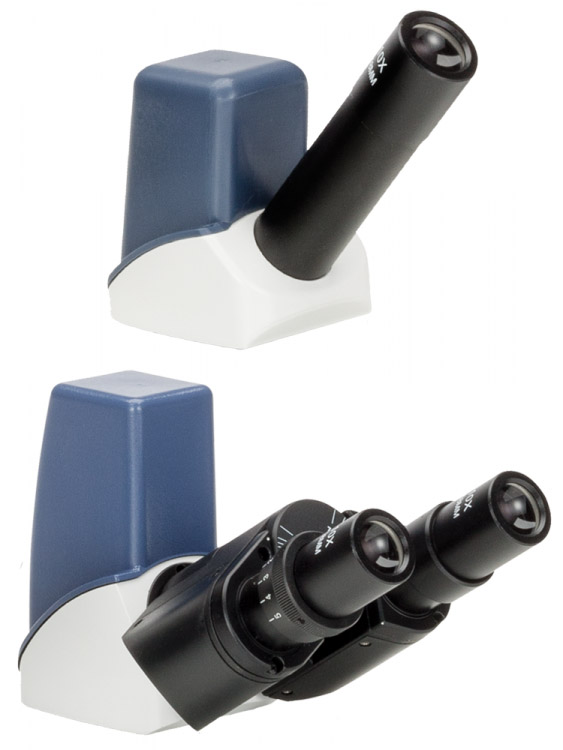

HEAD
Monocular models with 45° inclined tubes. Binocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube. All heads are 360° rotatable and secured with a screw. All models are supplied with an integrated 3.2MP USB-2 camera

NOSEPIECE
Reversed quadruple nosepiece on ball bearings

OBJECTIVES
All models are supplied with semi plan 4x/0.10, 10x/0.25 and S40x/0.65 objectives. Models with an S60x/0.85 or S100x/1.25 oil immersion objective are also available. The S40x, S60x and S100x oil immersion objectives are spring loaded.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING
Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation.
Total travel approximately 23 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives
. The coarse adjustments are equipped with friction control

STAGE
130 x 130 mm with mechanical 70 x 28 mm X-Y translation stage except for model BB.4205. This model has a 120 x 120 mm plain stage supplied with two non- removable object clamps

CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

ILLUMINATION
Binocular models are supplied with an adjustable 1 W NeoLED illumination system for increased light output. Monocular models have a standard adjustable 1 W LED illumination. All BioBlue microscopes are supplied with rechargeable batteries and integrated power supply for cordless operation

CAMERA
All the BioBlue digital microscopes are equipped with a 3.2 MP CMOS USB-2 camera, maximum resolution 2048 x 1536, 24 bits color depth, up to 15 frames per second. Delivered with ImageFocus 4 software, USB-2 cable and a micrometer 1mm/100 slide. Warranty for the camera is 2 years

SOFTWARE
The capture and analysis ImageFocus 4 software allowsto save images in .jpg, .tif or .bmp formats as well as .avi format videos. Images can be annotated and measurements can be performed in live or captured images. Compatible with Windows XP, Vista, 7, 8 and 10, both 32 and 64 bits configurations. Mac OS Light version isalso available for capturing images

PACKAGING
Supplied with power cord, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil for models with S100x objective. All packed in a polystyrene box
